Suncoast 24V 5000VA Off-Grid System Pack – PowerMax 24V 10kWh

Name: Suncoast 24V 5000VA Off-Grid System Pack – PowerMax 24V 10kWh
Brand: Suncoast Batteries
SKU: powermax-24v-10kwh
Price: 9299.00 AUD
Availability: InStock

$9,299.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Suncoast 24V 5000VA Off-Grid Battery Pack

Power-Max Lithium Power System 24V – ~10kWh

Take the stress out of building your own system with Suncoast Batteries’ complete 24V Off-Grid Pack. This kit combines premium Victron Energy hardware with high-capacity Fusion Lithium batteries, delivering a powerful, expandable, and smartly monitored energy solution for cabins, tiny homes, workshops, or whole-home backup power.

What Can This 24V Off-Grid Kit Power?

With ~10kWh usable battery storage (2 × 24V 200Ah lithium) and a 5000VA inverter/charger (≈4000W continuous, 10,000W surge), this system can comfortably run:

✅ Household appliances: fridge, freezer, lighting, TVs, computers

✅ Kitchen loads: microwave, coffee machine, kettle, toaster

✅ Washing machine, pumps, and power tools

✅ Small to medium split-system air conditioners

✅ Whole-home essentials during a blackout

This system is a serious upgrade from smaller 12V or 3000VA kits — perfect for full-time off-grid living or large-scale backup.

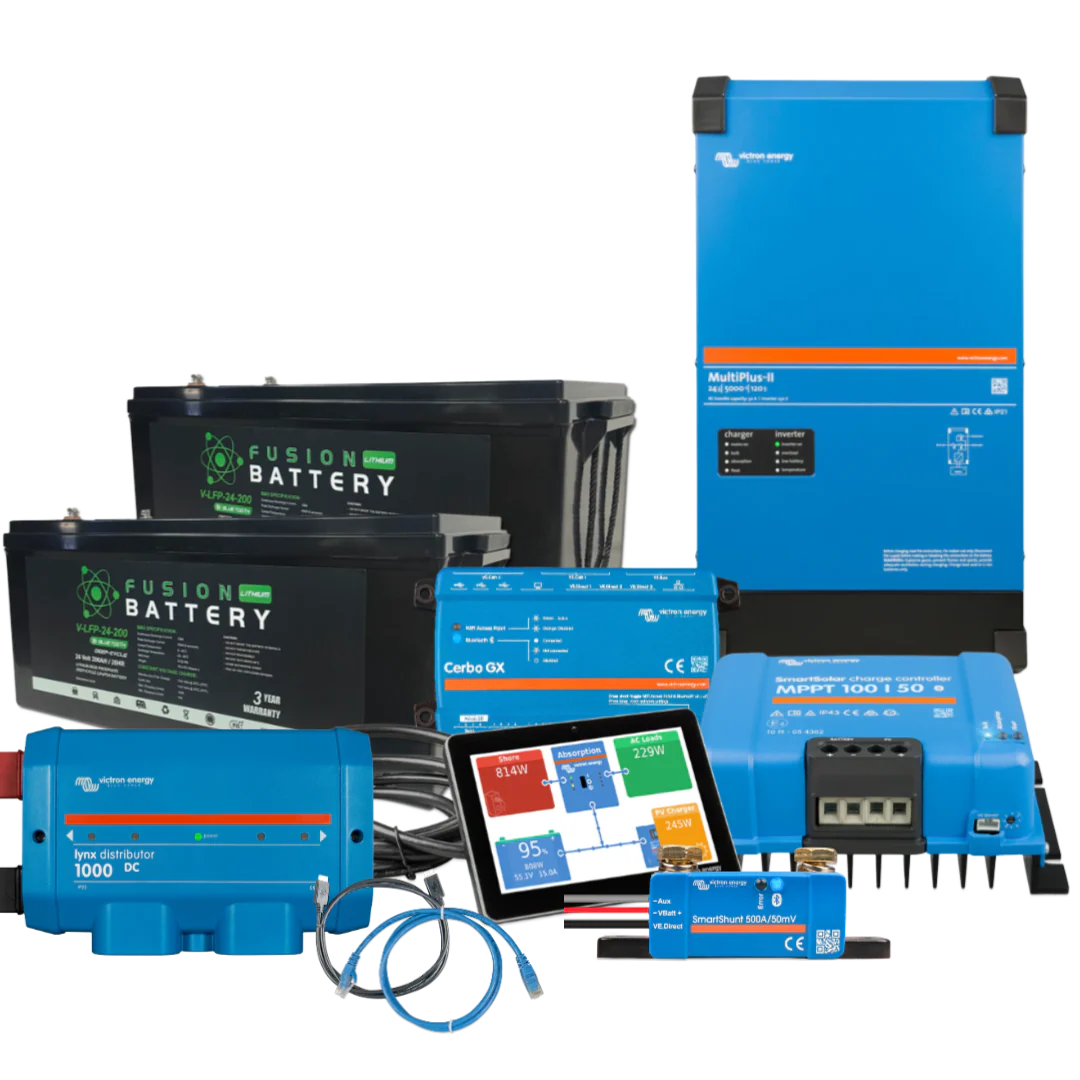

What’s Included in the Kit?

1 × MultiPlus-II 24/5000/120-50 230V – PMP242505010

1 × SmartSolar MPPT 100/50 – SCC110050210

2 × Fusion Lithium 24V 200Ah Batteries

1 × Lynx Distributor (M8) – LYN060102000

1 × Cerbo GX MK2 – BPP900451100

1 × GX Touch 50 – BPP900455050

1 × SmartShunt 500A/50mV IP65 – SHU065150050

1 × RJ45 UTP cable 1.8m – ASS030064950

3 × VE.Direct cable 1.8m – ASS030530218

Why Choose the Suncoast 24V 5000VA Pack?

🔋 Big storage: ~10kWh usable lithium power

⚡ High output: 5000VA inverter/charger for heavy loads

🌞 Solar-ready: Supports up to ~1.2kW solar input

📊 Smart monitoring: Remote access via Victron VRM

🛠️ Expandable: Add more batteries or solar as needed

🔋 System Overview

This system is a complete 24V off-grid / backup power solution.

It stores ~10.24kWh usable energy in two big 24V lithium batteries.
It converts DC battery power into 230V AC mains via a Victron 5000VA inverter/charger.
Recharge from solar, generator, or mains.
Fully monitored with Cerbo GX + Touchscreen, including remote access via the Victron VRM app.
Designed for large off-grid cabins, workshops, or small homes needing reliable power day & night.

⚙️ Key Components Explained

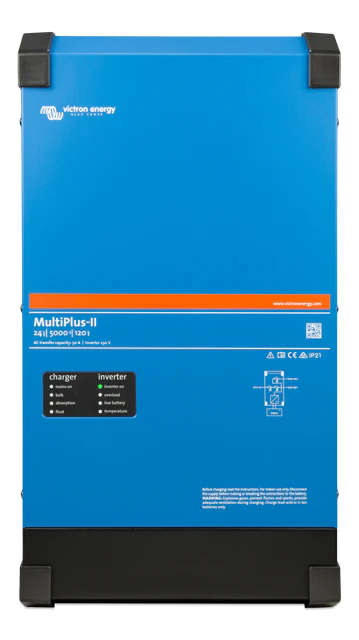

MultiPlus-II 24/5000/120-50 (PMP242505010)

The heart of the system. Works as both an inverter (24V DC → 230V AC, 4000W continuous, 10,000W surge) and a charger (up to 120A). Handles big loads like fridges, microwaves, power tools, pumps, and small A/C. UPS function for instant switchover.

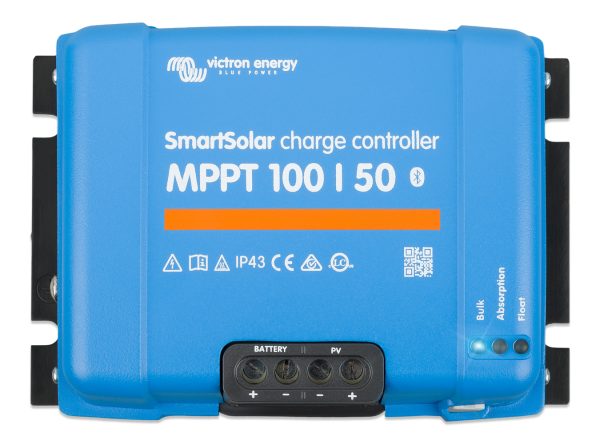

SmartSolar MPPT 100/50 (SCC110050210)

Solar charge controller. Connects solar arrays up to ~1.2kW at 24V. MPPT maximises energy harvest in variable conditions.

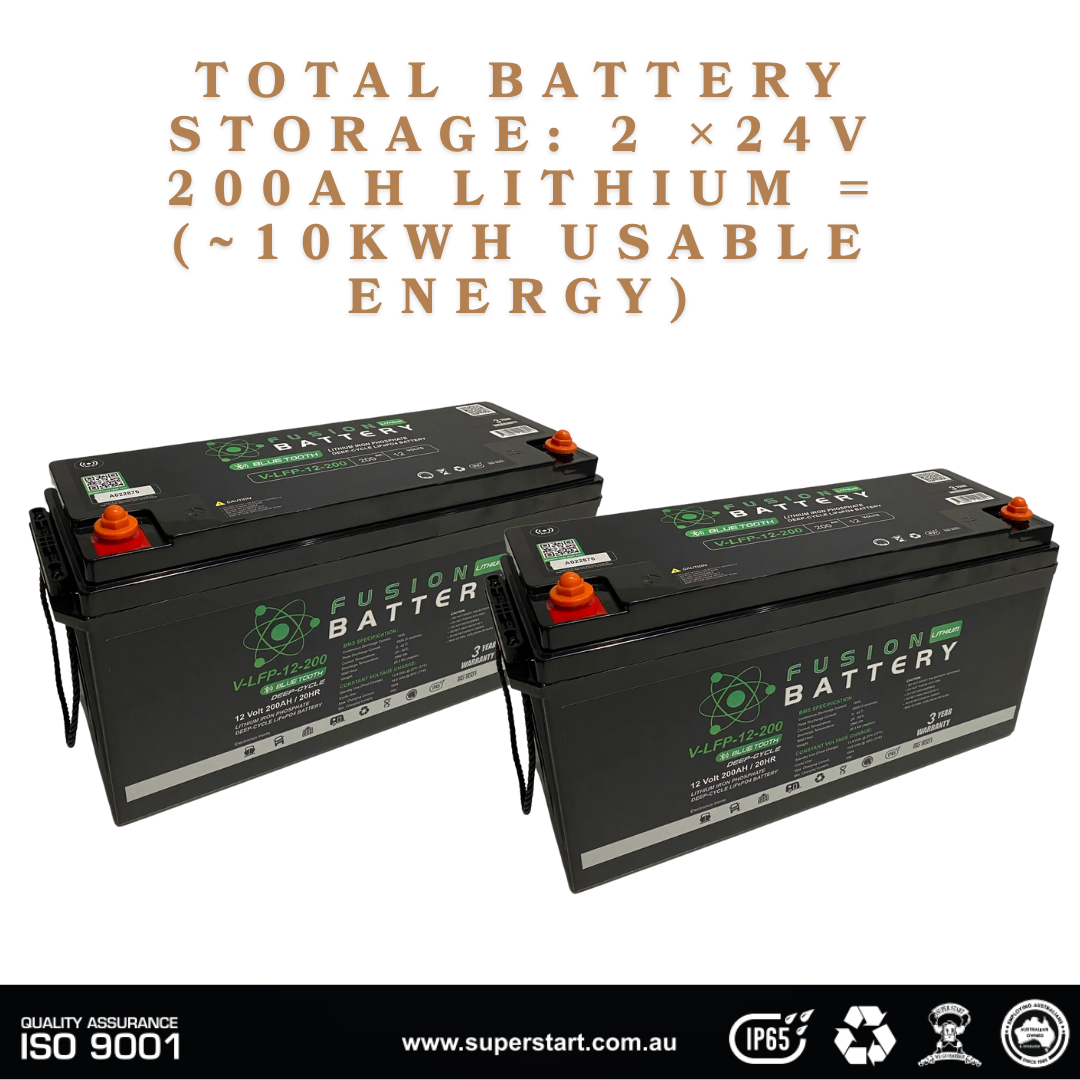

Fusion Lithium 24V 200Ah (×2)

Each ≈ 5.12kWh; together ≈ 10.24kWh usable. Safe lithium chemistry with built-in BMS. Long lifespan (thousands of cycles).

Lynx Distributor (LYN060102000)

Heavy-duty DC busbar with fuses. Keeps wiring neat, safe, and expandable.

Cerbo GX MK2 (BPP900451100)

System controller that aggregates data from inverter, solar, batteries, and shunt. Enables Victron VRM remote monitoring.

GX Touch 50 (BPP900455050)

5-inch touchscreen showing battery %, loads, solar input, charging status, and live power flows.

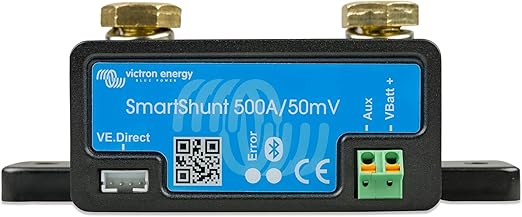

SmartShunt 500A/50mV (SHU065150050)

Precision battery monitor. Tracks SOC, usage history, and provides accurate readings to Cerbo GX.

Cables (RJ45 & VE.Direct)

Ensure all devices communicate and provide live data.

🏡 What Can It Power?

With ~10kWh storage and 4000W continuous output, it comfortably handles:

✅ Household essentials – fridge, freezer, lights, TV, Wi-Fi, computers

✅ Kitchen appliances – microwave, kettle, toaster, coffee machine

✅ Washing machine, pumps, power tools

✅ Small–medium split-system air conditioning

✅ Whole-home essentials during grid outages

⚡ In Simple Terms

This is double the storage & power of a typical 3000VA kit — moving from “caravan/tiny home” to serious off-grid living or home backup.
