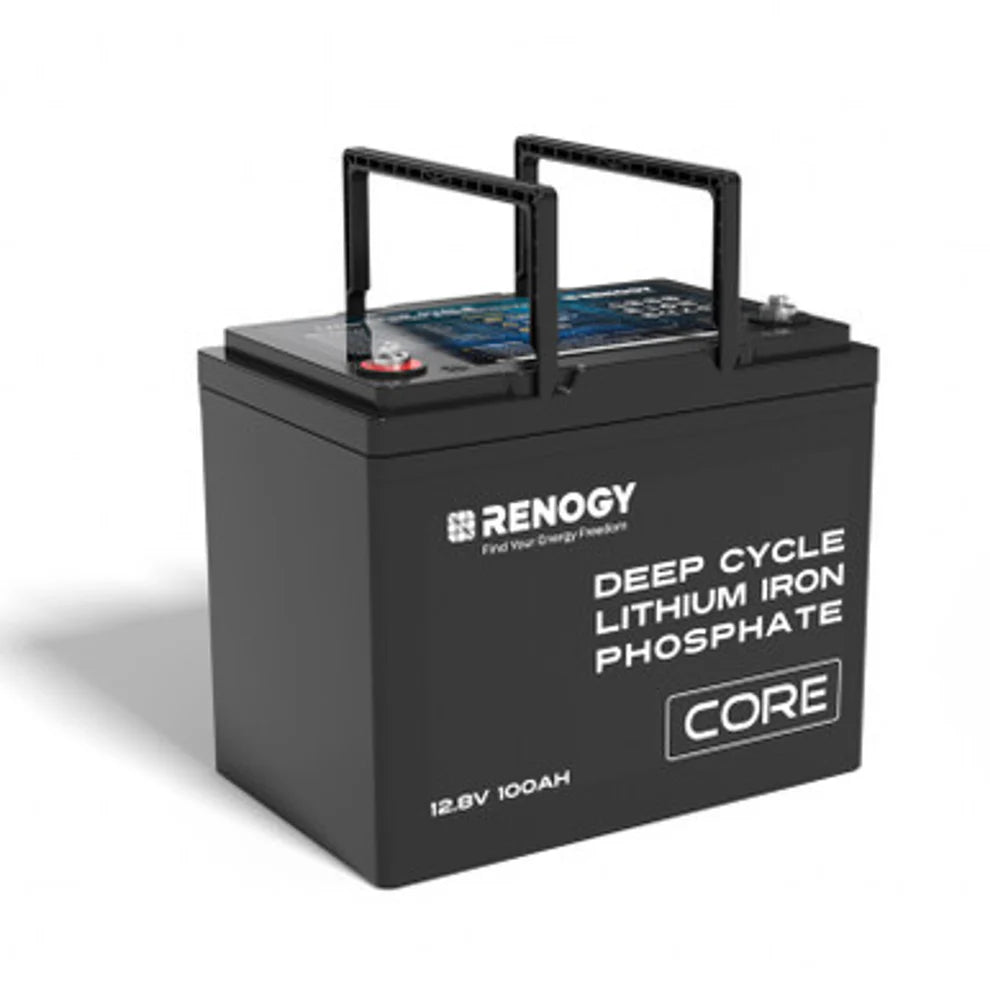

Renogy Core Mini 12.8V 100Ah Lithium LiFePO4 Battery
Renogy Core Mini 12.8V 100Ah Lithium LiFePO4 Battery
Couldn't load pickup availability
Renogy Core Mini 12.8V 100Ah Lithium LiFePO₄ Battery
Compact • Powerful • Built for Australian Conditions
Renogy 12V 100AH LiFePO₄ Battery
SIZE: (L)229×(W)138×(H)213mm WEIGHT: 9.9KG
Truly Compact Power for Endless Adventure
Enjoy dramatically more usable energy, faster charging, and far longer service life than AGM or lead-acid batteries. If you want a battery that fits almost anywhere, weighs a fraction of traditional batteries and lasts up to a decade, the Renogy Core Mini 100Ah LiFePO₄ is the new benchmark. Designed for Australian RVs, 4WDs, campervans, marine setups and portable power systems, it delivers huge power in a compact footprint.Featuring low-temperature protection, an IP65 weather-sealed housing and compatibility with the Renogy 300A Smart Shunt for live mobile monitoring, this battery gives you the freedom to power your adventures anywhere in Australia — from the coast to the outback.
Can be mounted on its sides to fit in cramped spaces. Switch once. Enjoy 5000 cycles of performance. Never look back.
🔑 Key Features & Benefits
Renogy's smallest 12.8V 100Ah LiFePO₄ battery (Group 22NF footprint)
Up to 10× more cycle life than AGM – your investment lasts for years, not months
Low-temperature cut-off for safer charging in freezing weather
Side-mountable design to fit in tight or awkward battery compartments
60% lighter than comparable AGM – easier installs and better fuel economy in RVs
Holds voltage under load – fridges, inverters and pumps run stronger and longer
IP65-rated & vibration-resistant for harsh off-road and marine environments
Works with the Renogy 300A Battery Shunt for Bluetooth / app-based monitoring
Safe LiFePO₄ chemistry – no gassing, no swelling, extremely stable
Certified to UN38.3, CE, FCC, RoHS, UKCA, RCM standards
6-Year Suncoast Batteries Warranty for long-term peace of mind
📊 Technical Specifications
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 100 Ah (0.5C, 25 °C) |
| Voltage Range | 10–14.8 V |
| Max Charge / Discharge | 100 A / 100 A |
| Peak Discharge | 300 A (5 s) |
| Cycle Life | 5000 cycles @ 80% DOD (80% EOL) |
| Operating Temperatures | Charge 0–50°C | Discharge –20–60°C Storage –25–65°C | RH 10–95% |
| Connection Method | Up to 4S4P (expandable banks) |
| Protection Rating | IP65 |
| Dimensions / Weight | 229 × 138 × 213 mm | 9.9 kg |
❓ Frequently Asked Questions

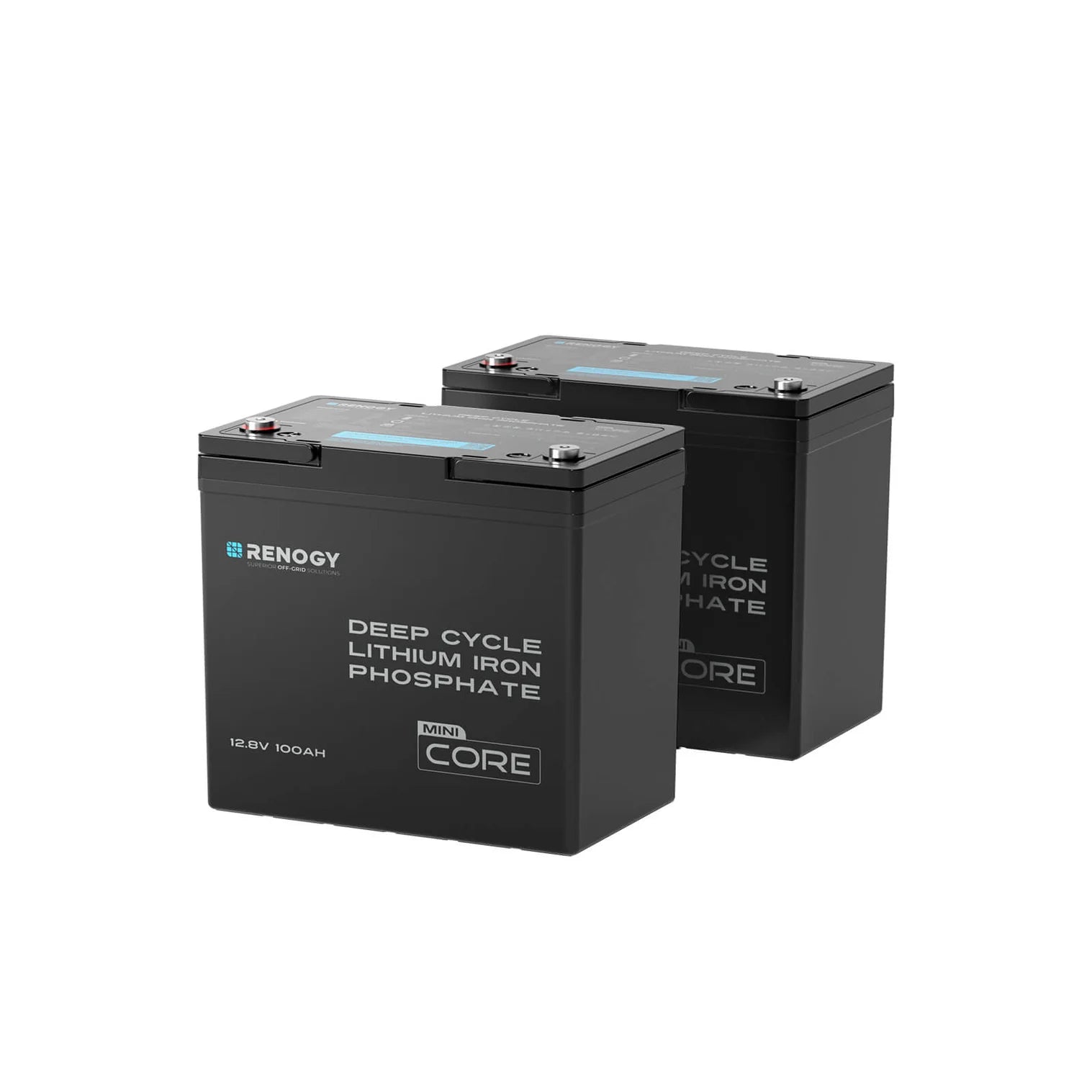

1. Can this battery be used in series to build a 24V system?
Yes. You can connect Renogy 12.8V 100Ah Core Mini batteries in series for a 24V off-grid power system.
2. Does this Core Mini LFP battery have low-temperature cut-off?
Yes. It has built-in low-temperature charging protection to prevent charging below 0°C (32°F).

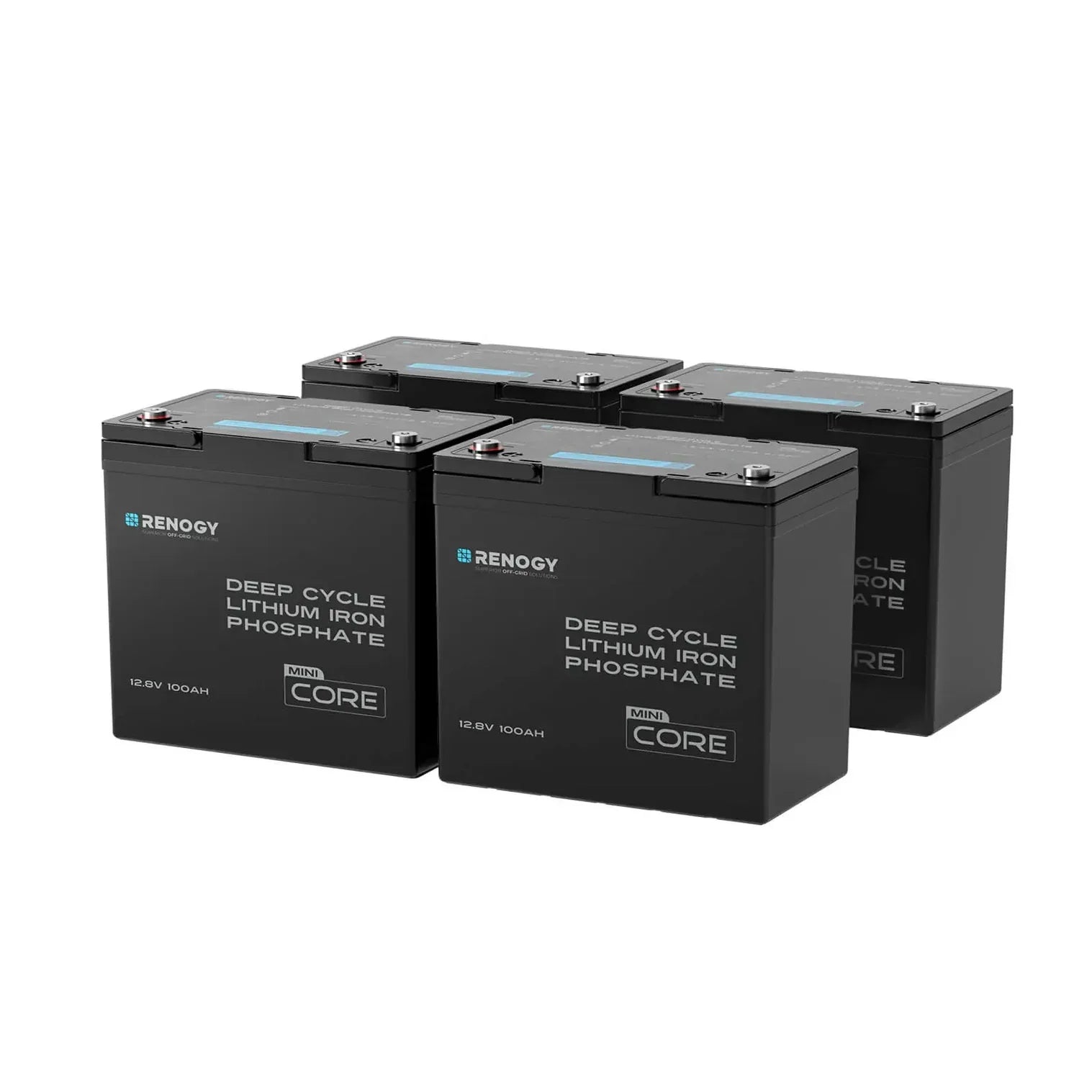

3. How many 12.8V 100Ah Core Mini batteries can I connect?
You can connect up to 16 batteries in series and parallel to expand capacity to 20.48kWh. Batteries must be the same model and similar age/capacity.
4. Can I use a Bluetooth module to monitor this battery?
This battery does not have a direct Bluetooth port, but you can use a Renogy 300A Battery Shunt (sold separately), which sends data to the Renogy DC Home app via Bluetooth.
5. How should I recharge my LiFePO₄ batteries?
Use a solar charge controller, DC-DC charger, or AC charger that supports LiFePO₄ profiles. Correct charging is essential for performance and lifespan.
🎯 Ideal Applications
- 4WD touring & camper trailer lithium upgrades
- Caravan & RV energy systems
- Marine house banks & small boats
- Portable 12V power stations & battery boxes
- Off-grid solar camping setups
📦 Package Includes
- Renogy Core Mini 12.8V 100Ah LiFePO₄ Battery × 1
- Long Terminal Bolts (M8 × 1.25 × 15 mm) × 2
- User Manual × 1
