12V 20A DC to DC Battery Charger Dual Battery System MPPT
12V 20A DC to DC Battery Charger Dual Battery System MPPT
Couldn't load pickup availability

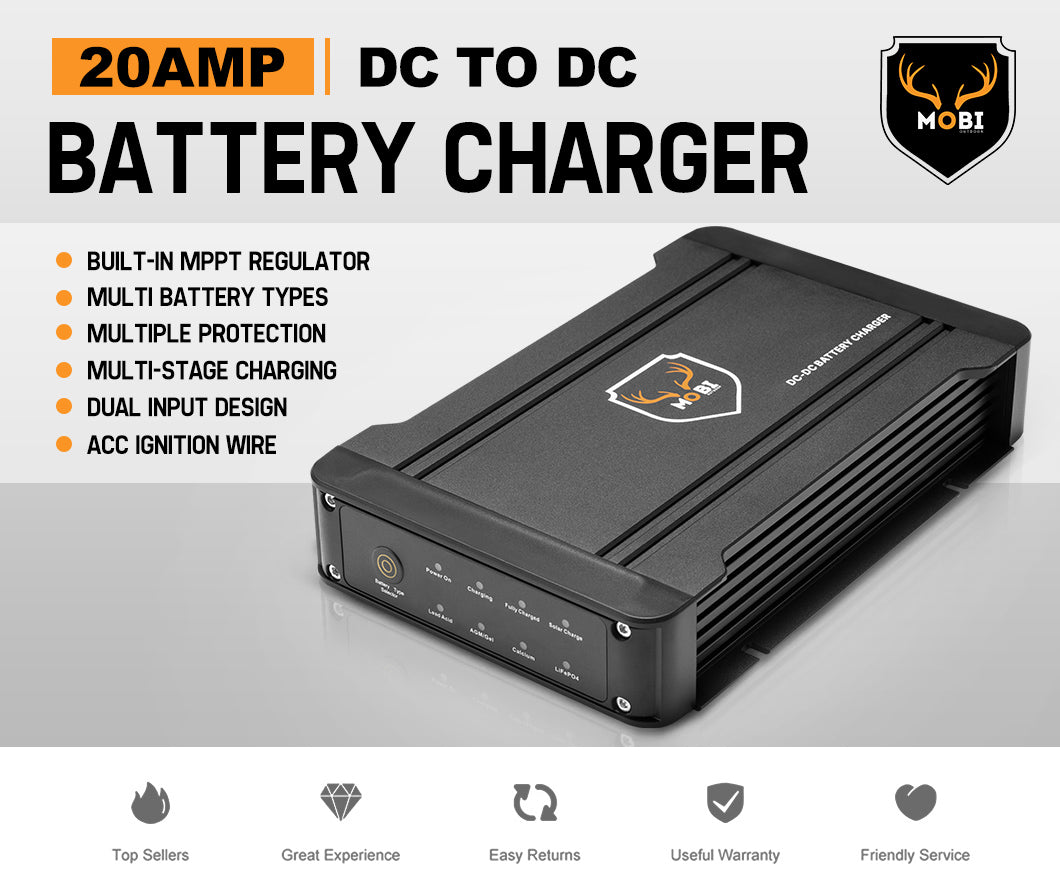

20A DC-DC Battery Charger (12V) with MPPT – AGM & Lithium (LiFePO₄)
Keep your aux battery topped up—anywhere. This compact DC-DC charger pulls power from your vehicle’s alternator and from solar via a built-in MPPT regulator, so you arrive with more charge and less engine load. It supports AGM, Gel, Calcium, VRLA, Flooded and Lithium (LiFePO₄) batteries, works with modern smart alternators, and uses multi-stage charging to maximise battery life. A pulse-recovery routine helps revive deeply discharged batteries, while comprehensive protections keep your system safe on the rough stuff.

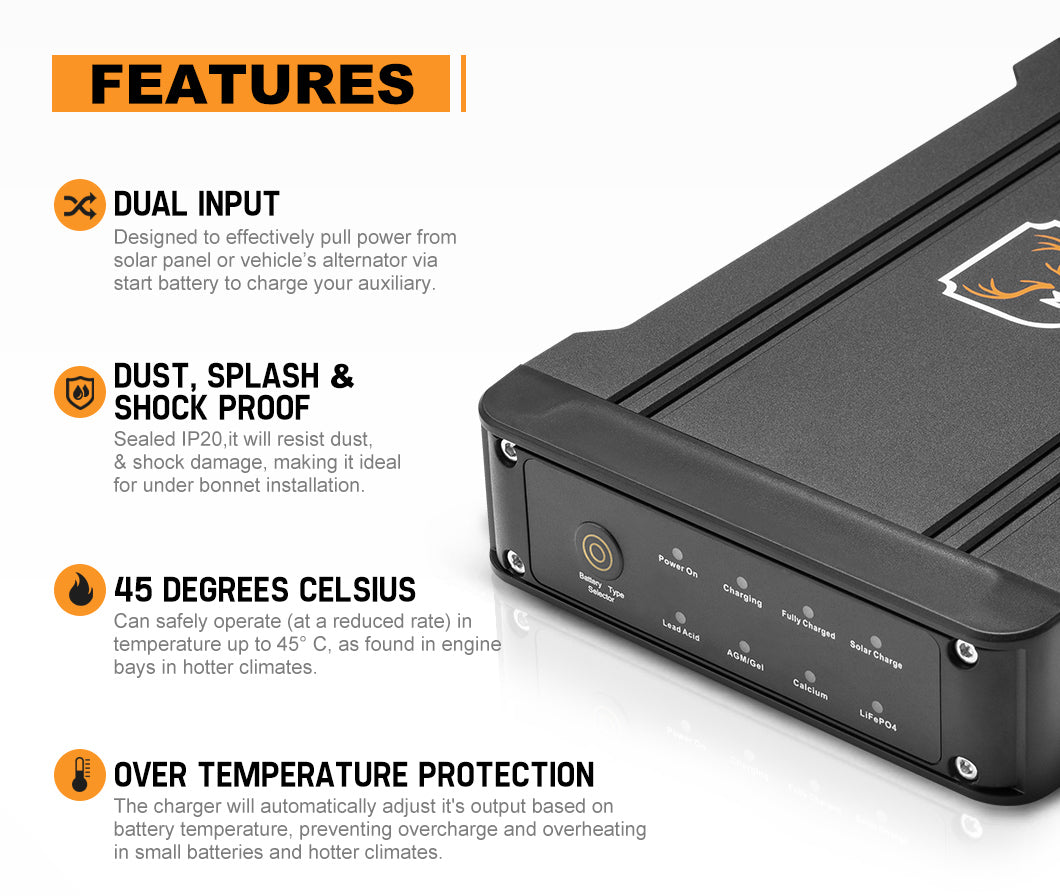

Key Features

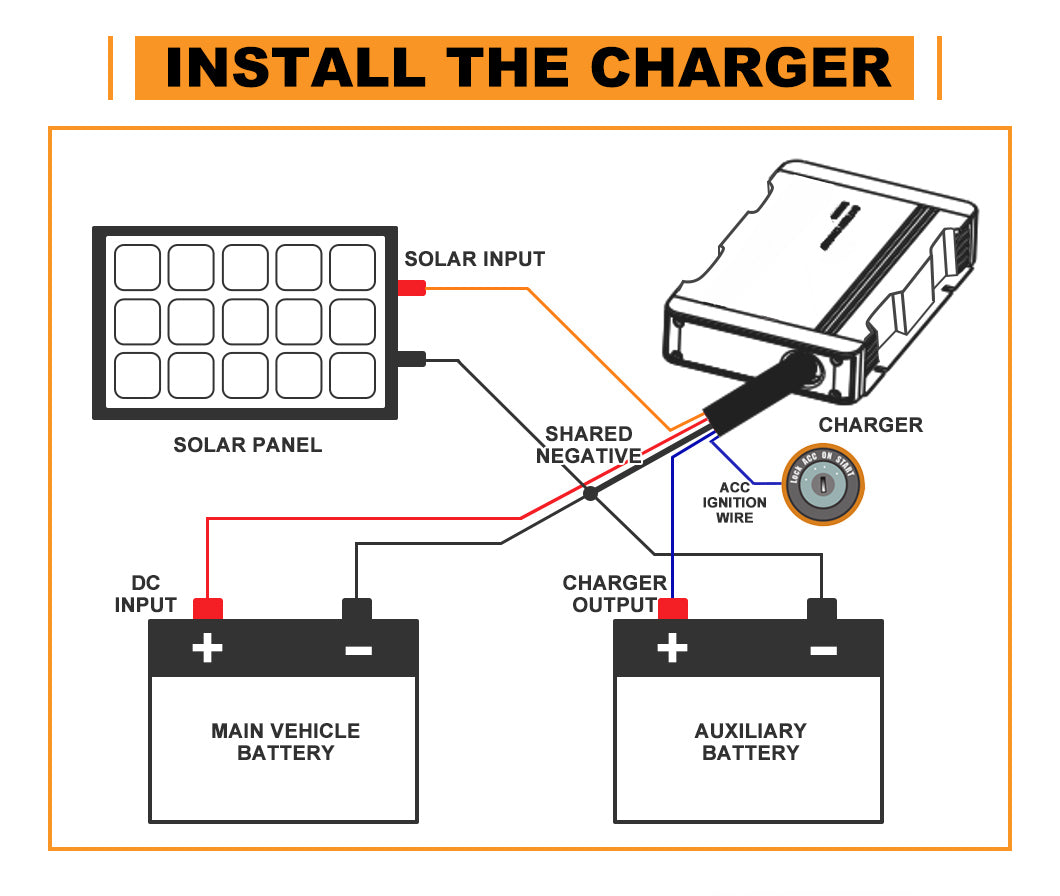

Dual Input: charges from the vehicle alternator or from solar panels (built-in MPPT).

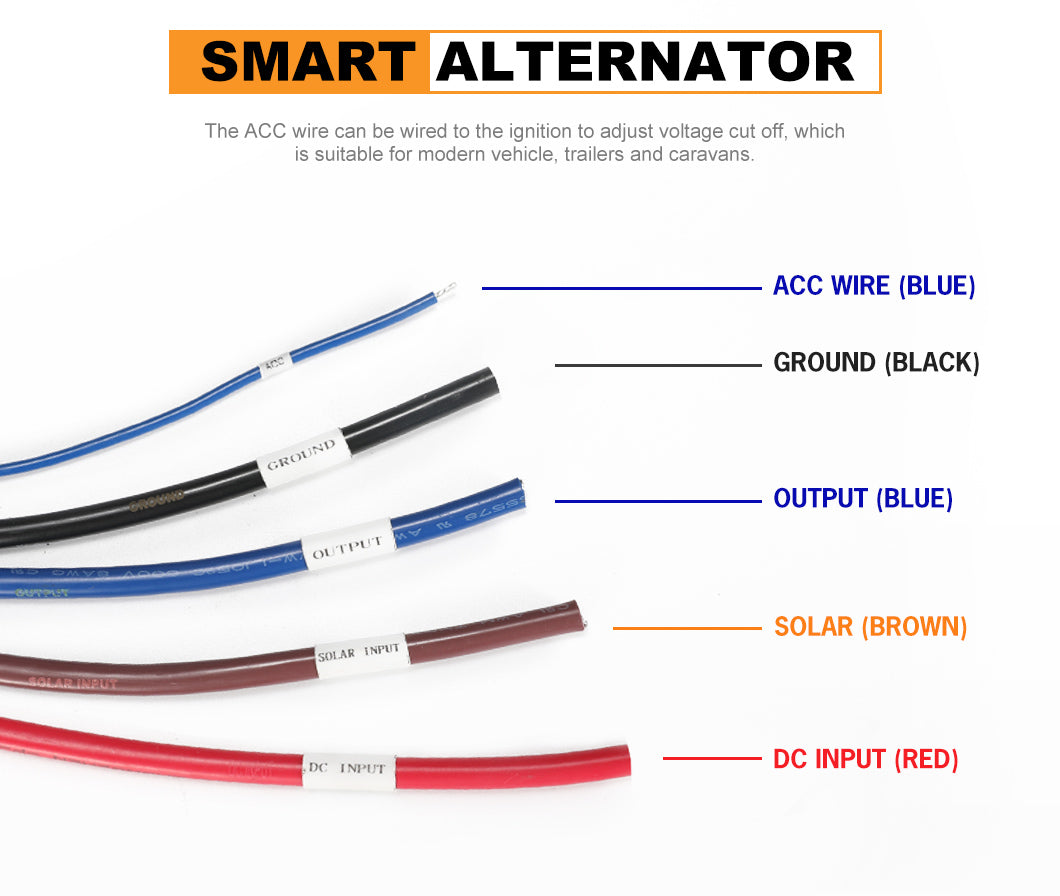

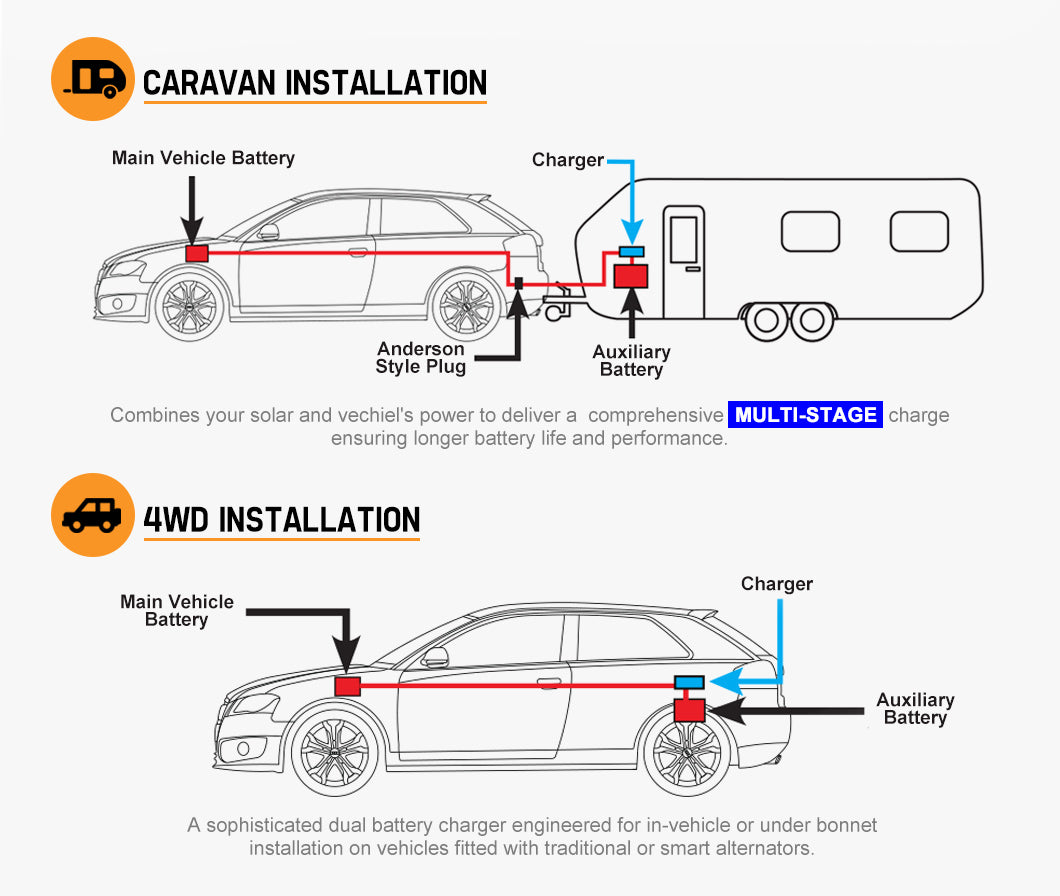

Smart Alternator Compatible: ACC/ignition wire control for correct cut-in/cut-out on modern vehicles, caravans and trailers.

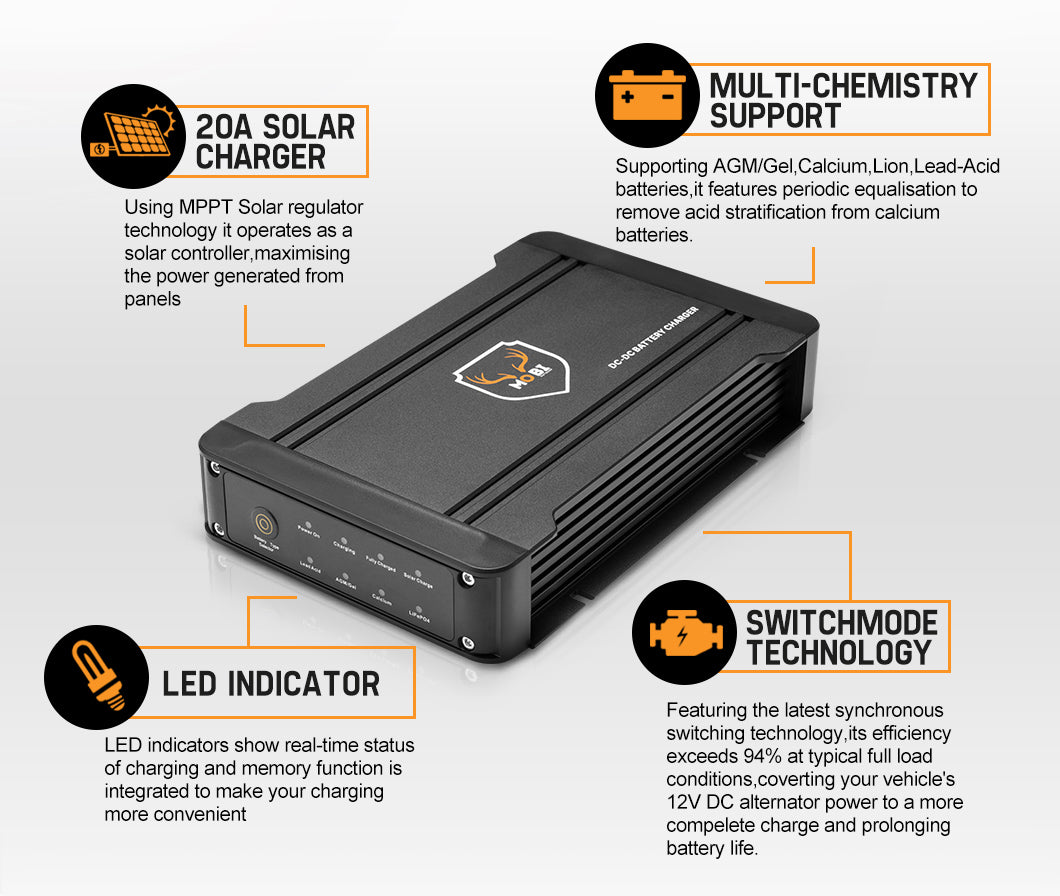

Built-in MPPT: optimises solar harvest to reduce engine load and shorten charge times.
Pulse Charging Algorithm: selects optimal modes and helps recover deeply discharged batteries.
Multi-Stage Charging: bulk → absorption → float for efficiency and longer battery life.
Multi-Chemistry Support: AGM, Gel, Calcium, VRLA, Flooded & Lithium (LiFePO₄).
Comprehensive Protection: over-charge, short-circuit, over-temp/thermal load, solar input overload, input/output reverse-polarity.
Internal Temp Monitoring: protects electronics and improves reliability.
Detailed Specifications
| Type | Multi-Stage 12V DC-to-DC |
| Features | MPPT solar input, Smart-alternator compatible |
| Models | 20A / 30A / 40A |
| Suitable Battery Types | AGM, Gel, Lead Acid, Calcium, LiFePO₄ |
| Recommended Battery Range | 60–600Ah (20A) • 90–900Ah (30A) • 120–1200Ah (40A) |
| Inputs | Alternator/DC: 13–16V • Solar (MPPT): 16–25V |
| Output / Charging Voltage | 13.5–15.4V (stops charging when alternator/vehicle battery < 12.4V) |
| Max Output Current | 20A / 30A / 40A (by model) |
| Minimum Start Voltage | 2.0V (battery being charged) |
| Soft Start | Yes |
| Bulk Charge Voltage | AGM/Gel: 14.7V • Lead Acid: 14.4V • Calcium: 15.4V • LiFePO₄: 14.6V |
| Absorption | Constant voltage with automatic amperage control |
| Equalisation | Automatic |
| Float Voltage | 13.5V (AGM/Gel/Lead Acid/Calcium) |
| Float Current | 100mA |
Cable Gauge Guide (Minimum)
| Run Length | 20A Model | 30A Model | 40A Model |
|---|---|---|---|
| 0–1 m | 11 AWG | 8 AWG | 8 AWG |
| 1–5 m | 9 AWG | 6 AWG | 6 AWG |
| ≥ 5 m | 7 AWG | 4 AWG | 4 AWG |
