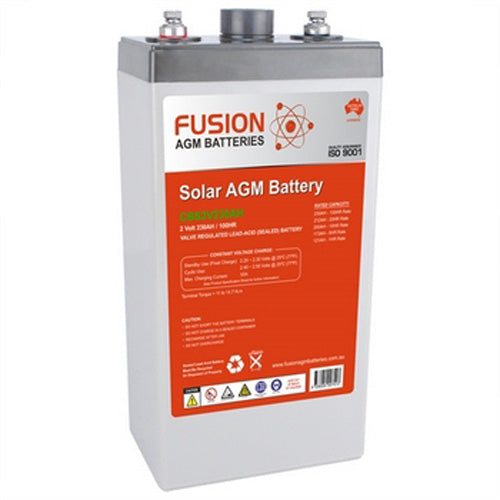

CBS2V230AH Fusion Solar AGM 2V Solar Battery

CBS2V230AH Fusion Solar AGM 2V Solar Battery

Compact 2V AGM deep-cycle cell for building reliable solar banks. Fusion’s CBS Series is sealed, non-spillable and maintenance-free, delivering safe operation in confined spaces and dependable performance across harsh Australian climates.

Why the CBS2V230AH is a Superior Solar Battery

• Genuine AGM VRLA: sealed, spill-proof design with oxygen recombination — no topping up; safe in low-vent areas.
• Orientation-flexible: install on its side or even upside down to suit tight cabinets.
• Thermal-smart build: chemistry and plate spacing reduce internal heat and slow grid corrosion for longer life.
• Solar-ready endurance: enhanced tolerance to partial state-of-charge with strong over-discharge recovery — ideal for cloudy periods.
• Flame-retardant ABS & ISO 9001 QA: added safety and manufacturing consistency.

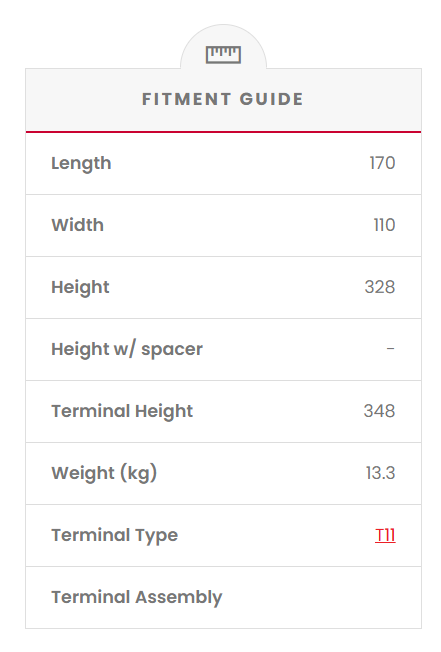

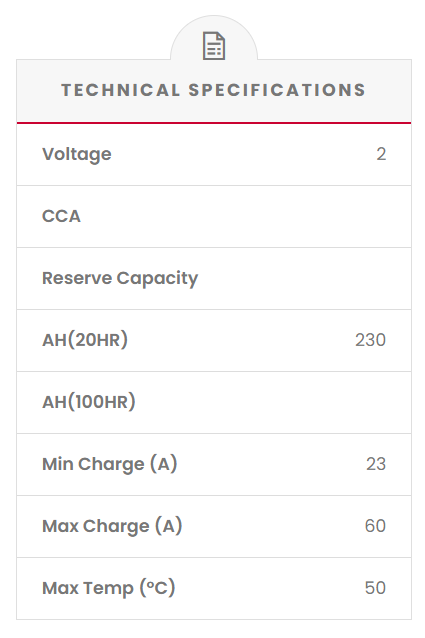

Specifications

Battery Bank Sizing Example

Build series strings of 2V cells for common system voltages:

*Energy figures use 100-hour capacity; real-world results vary with temperature, inverter load and depth-of-discharge.

Ideal For

• Small to mid-size off-grid and hybrid solar banks (24V / 48V)
• Telecoms & communications backup
• Commercial, industrial & agricultural storage
• Remote area and shed power systems

Charging & Storage Tips

• Use an AGM-compatible regulator/charger; set absorption & float per datasheet.
• Provide ventilation and avoid high ambient heat to maximise service life.
• If stored, top-up charge about every 6 months at ~25 °C (shorter interval in hotter regions).

Quick FAQ

Maintenance-free? Yes — sealed AGM VRLA, no water top-ups.
Sideways mounting? Yes — non-spillable design supports flexible orientation.
Expected life? Typically ~8 years in standby; cycling life depends on DoD and heat.

Note: Specifications are manufacturer-provided and may change without notice. Confirm capacity needs, physical fit, terminals and charge settings before installation.
