Suncoast 24V 3000VA Off-Grid Battery Pack
Freedom Plus Lithium Power System 24V – 5kWh Usable
Step up to higher efficiency with Suncoast Batteries’ complete 24V Off-Grid Pack. Built with premium Victron Energy hardware and robust Fusion Lithium batteries, this system delivers smooth power for larger loads, reduced cable losses, and simple monitoring making it ideal for cabins, larger caravans, sheds and dependable backup power.
Core Idea of the System
This kit is designed to be a complete 24V off-grid or backup power solution.
It stores energy in two 24V lithium batteries (100Ah each = ~5kWh usable storage).
It converts that stored DC power into usable 230V AC power through the Victron MultiPlus-II inverter/charger (3000VA, ~2400W continuous).
Solar panels (not listed here) can be connected to the MPPT solar charge controller, which manages solar input efficiently.
The system is fully monitored and controlled with Victron’s Cerbo GX + GX Touch 50 display.
This setup is expandable, safe, and smart making it ideal for off-grid cabins, caravans, tiny homes, or backup energy at home
What Can This 24V Off-Grid Battery Kit Power?
With ~5kWh usable battery storage (2 × 24V 100Ah lithium) and a 3000VA inverter/charger (≈2400W continuous with higher surge), this setup comfortably runs everyday essentials and many small household appliances much more efficiently than 12V at higher loads.
✅ Caravan & Camper (24V)
- 12/24V or 240V fridge-freezer
- LED lights, fans, water pump
- Laptops, phones, camera chargers
- TV/streaming box, router
- Microwave, coffee machine, induction cooktop (short bursts)
🏡 Tiny Home / Shed
- Household fridge & small freezer
- Lights, fans, internet router
- TV & entertainment system
- Kitchen appliances (kettle, toaster, mixer)
- Efficient washing machine (cold/eco cycles)
- Power tools up to ~2400W (intermittent)
🆘 Emergency Backup
- Fridge, lights, modem/router
- CPAP & small medical devices*
- Device charging & comms
- Sump/small water pump (short runs)
*Check your device’s power rating and consult your clinician/equipment supplier.
Illustrative Daily Energy Budget
Guide only: Actual results vary with appliance efficiency and usage.
| Appliance | Typical Load | Daily Use | Energy (Wh) |
|---|---|---|---|
| Fridge (efficient) | ~60W avg | 24 hrs (cycling) | 1,200–1,500 |
| LED Lighting (whole setup) | ~20W | 5 hrs | 100 |
| TV + Router | ~120W | 3 hrs | 360 |
| Laptop Charging (×2) | ~60W | 3 hrs | 180 |
| Microwave (quick heats) | ~1000W | 10 mins | 170 |
| Coffee Machine / Induction | 1500–1800W | 5–10 mins | 125–300 |
| Power Tools (intermittent) | ~1200W | 30 mins | 600 |
| Illustrative subtotal | ~2.7–3.2 kWh | ||
Solar input: The MPPT 100/30 suits ~600–800W solar. In good sun this can typically replenish a significant portion of daily use. Output varies with panel size, angle, location and weather.
Why choose a 24V system ? Lower currents for the same power = less voltage drop, thinner/shorter cabling, and better efficiency at higher loads.
Power limits: Keep continuous AC loads within ≈2400W. High-draw appliances (air-con, ovens, hot water) may exceed capacity or deplete batteries quickly.
Expandable: Add batteries for more storage, add solar for faster charging, or upgrade inverter capacity as needs grow.

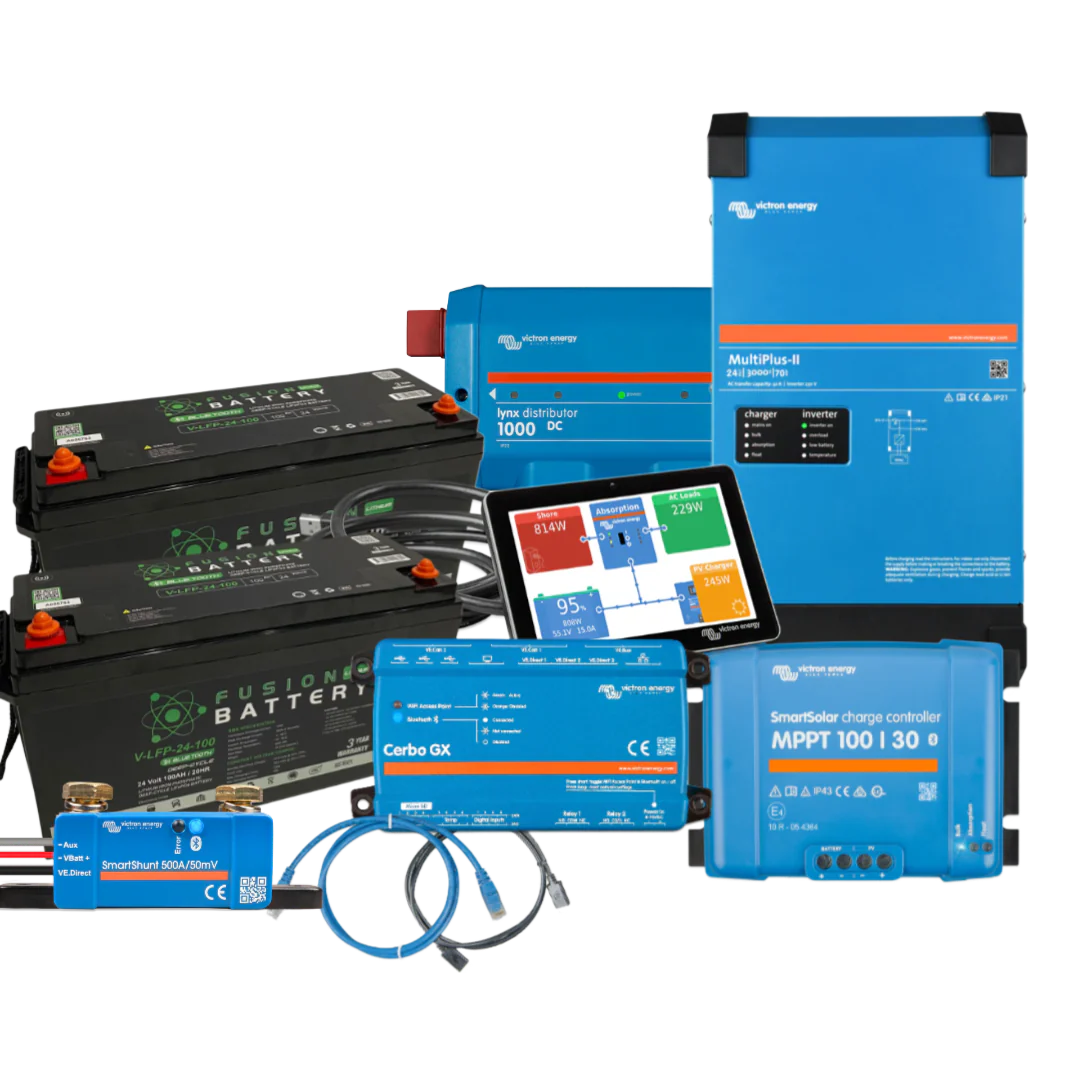

What’s in the Freedom Plus Lithium Power System (24V – ~5kWh)
- MultiPlus-II 24/3000/70-32 230V Inverter/Charger – (PMP242305010)
- SmartSolar MPPT 100/30 Solar Charge Controller – (SCC110030210)
- 2 × Fusion Lithium 24V 100Ah Batteries (~5kWh usable)
- Lynx Distributor (M8) DC busbar with fusing – (LYN060102000)
- Cerbo GX MK2 Monitoring & Control Hub – (BPP900451100)
- GX Touch 50 5" Touchscreen Display – (BPP900455050)
- SmartShunt 500A/50mV IP65 Battery Monitor – (SHU065150050)
- RJ45 UTP Cable 1.8 m – (ASS030064950)
- 2 × VE.Direct Cables 1.8 m – (ASS030530218)
Fusion Batteries include a 3-Year Complete Replacement Warranty. Warranty terms may vary by product and manufacturer — see the link above for full details.
Local delivery is available to residential and business addresses, including depot options. National delivery may be available; additional charges may apply depending on location and handling.
⚙️ LEARN MORE ABOUT THIS POWER SYSTEM > Main Components & Functions Included in this 24V Battery Kit

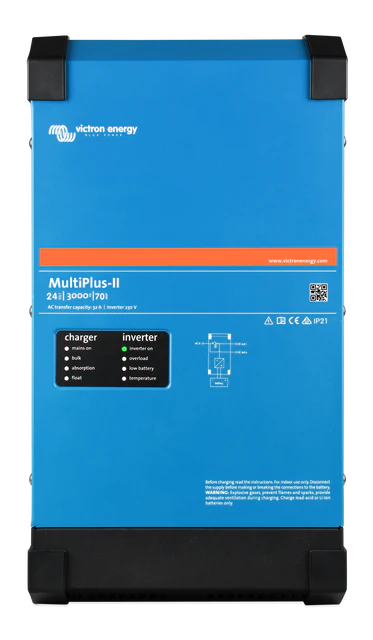

> MultiPlus-II 24/3000/70-32 (PMP242305010)
A combined inverter & charger.
Inverter: Converts 24V DC battery power into 230V AC (up to 2400W continuous, 6000W surge).
Charger: Can recharge the batteries from mains power or generator (70A charging).
Provides seamless switchover (UPS function) if grid power fails.

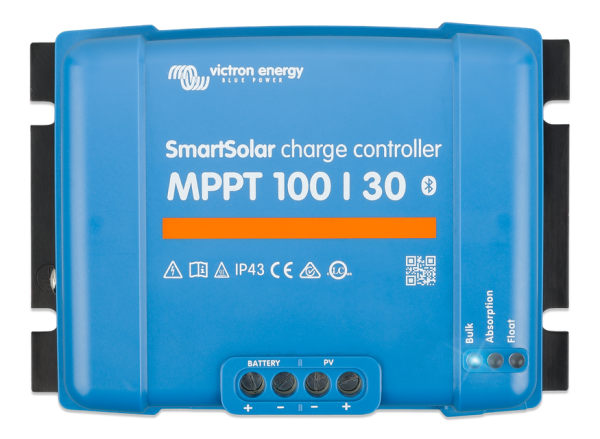

> SmartSolar MPPT 100/30 (SCC110030210)
Solar charge controller for up to 100V solar input.
Max charge output = 30A at 24V (~720W of solar panels).
Uses MPPT (Maximum Power Point Tracking) to optimise solar harvest.

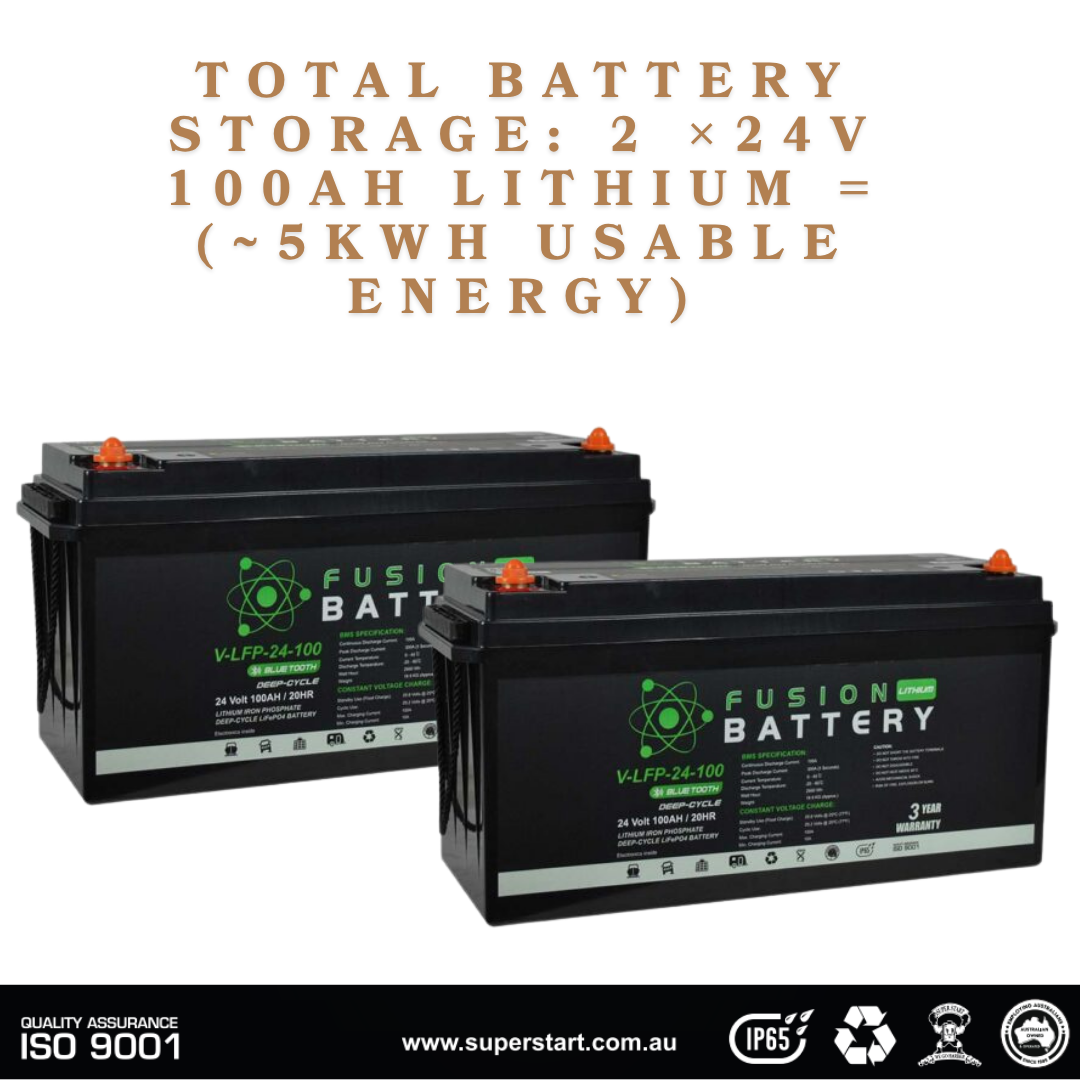

> Fusion Lithium 24V 100Ah Batteries (×2)
Each is ~2.56kWh of storage. Two in parallel = ~5.12kWh usable storage.
Lithium = lightweight, long cycle life, safe built-in BMS.
> Lynx Distributor (LYN060102000)
A DC busbar with built-in fuses and monitoring.
Connects batteries, inverter, solar charger safely with tidy wiring.
> Cerbo GX MK2 (BPP900451100)
The “brain” of the system.
Collects all data from batteries, inverter, solar, and shunt.
Allows remote monitoring via Victron VRM portal.
> GX Touch 50 (BPP900455050)
A 5-inch touchscreen display.
Mounted for local monitoring (shows power flows, battery state, solar production, etc.).

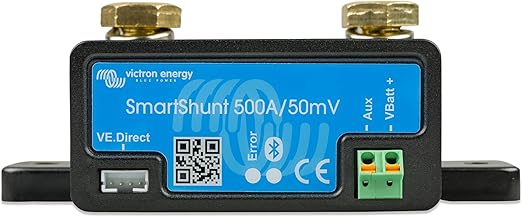

> SmartShunt 500A/50mV (SHU065150050)
High-precision battery monitor.
Tracks battery state of charge (SOC), usage, charging history.
Data feeds into Cerbo GX for accurate readouts.
> Cables (RJ45 UTP & VE.Direct)
Communication cables connecting components (solar charger, shunt, inverter, monitoring).
Ensure the system “talks” together in the Victron network.
